Description

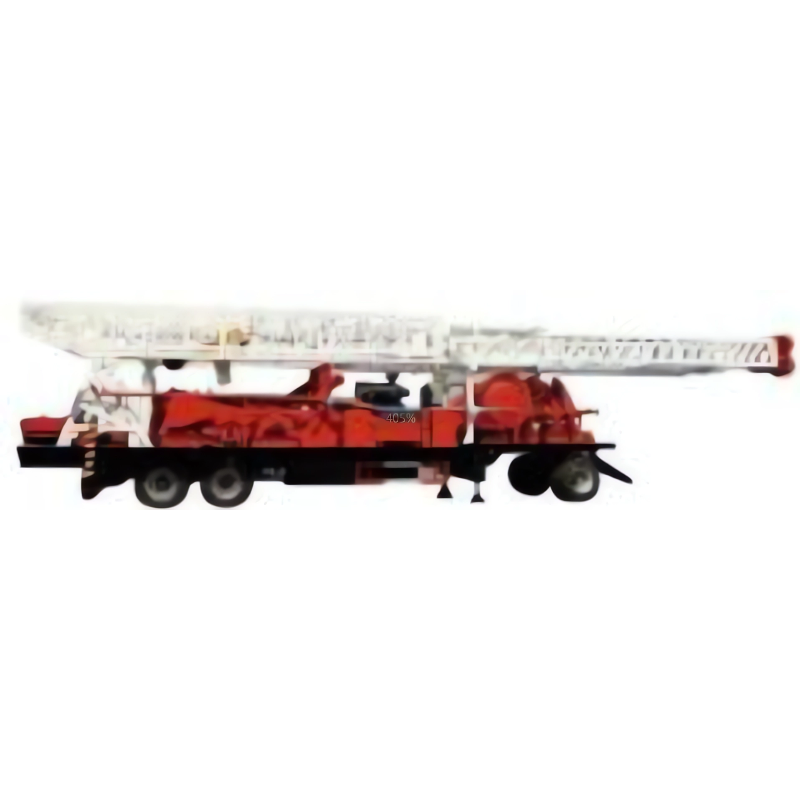

This trailer mounted rotary water well drilling rig is equipped with an independent diesel engine and an efficient power transmission system, featuring powerful torque output and outstanding drilling capacity, with a maximum drilling depth of up to 1,500 meters. It adopts advanced rotary drilling technology to ensure a stable and smooth drilling process, maintaining high efficiency even in deep drilling and complex stratum construction.
It adopts a fully trailer chassis structure and is equipped with high-strength steel off-road tires, featuring excellent off-road performance and maneuverability. Whether in mountains, hills, sandy areas, or remote field construction sites, the BZT1500 can move easily and be deployed quickly. The solid chassis and high-strength support system effectively ensure the stable operation of the drilling rig in complex environments, while significantly enhancing the durability and safety of the equipment.
The water well drilling rig can perform a variety of drilling techniques, such as mud drilling, down-the-hole hammer drilling, and air reverse circulation drilling, etc. It is suitable for various stratum structures, including clay layers, sand layers, weathered rock layers, and bedrock, and can effectively address drilling challenges in different geological environments.
| Technical Parameter | ||
| Drill Depth | 1000 (m); 1200 (m); 1 500 (m） | |
| Drill Rod | 89mm(3-1/Z") :114m(4-1/2") :127m(5-1/2"） | |
| Winch Capacity | Nain hook lifting capacity (kN) | 540 |
| Auxiliary hook lifting capacity (HN) | 300 | |
| Max-rope speed of main winch(m/min) | 198 | |
| Max-rope speed of auxiliary winch(m/min) | 85 | |
| Rotary Table | Inner dianeter(mm) | 660 |
| Rotate speed(rpn) | 37:52:84:145 | |
| Max-torque(kN.m) | 25 | |
| Mast | Height(mm) | 18482 |
| Rated load(t) | 60 | |
| Drill Tool | Kelly (mm) | 108+108+12190 |
| Drill rod(mm) | 89/114/127*9000 | |
| Mud pump | Disp l aoement (L/min) | 1200 |
| Pressure (Moa) | 7 | |
| Diesel Engine | Cumins NTA855-0360 | 269K8/2100rpm |
| Transportation Size | Length×Width×Height (mm) | 15300*2800*4400 |
