26 Ton Electric Bulldozer Crawler Dozer with 400kWh Battery Zero Carbon

Description

Zero-Emission All-Electric Power System

DE26 is fitted with a 400.6kWh on-board energy storage battery, achieving zero carbon dioxide emissions during operation and fully meeting urban environmental protection and mine low-carbon standards. Its single-operation power consumption is only 85kW·h, greatly cutting energy expenses compared with same-tonnage fuel dozers. Without an internal combustion engine, there is no need to replace engine oil, diesel fuel, filters and other consumables, eliminating regular engine maintenance and drastically reducing long-term operating costs. The machine runs without engine roar noise, perfectly suitable for construction sites with strict noise limits such as residential areas, parks and campuses.

Stable 26-Ton Grade Working Performance

The machine weighs 25500kg with sufficient self-weight to prevent slipping during dozing. Its minimum turning radius is 3745mm for flexible steering, easy to maneuver on narrow roads in factories and gardens. With a moderate ground pressure of 77kPa, matched with 560mm wide track shoes and 2730mm long grounding tracks, it avoids sinking on soft soil and lawns, balancing powerful compaction performance and ground protection. Each side is equipped with 38 track shoes, 6 supporting rollers and 2 carrier rollers. The travel chassis bears heavy loads and resists wear for long-term heavy-duty work.

Large Straight-Tilt Blade for Multi-Purpose Earthwork

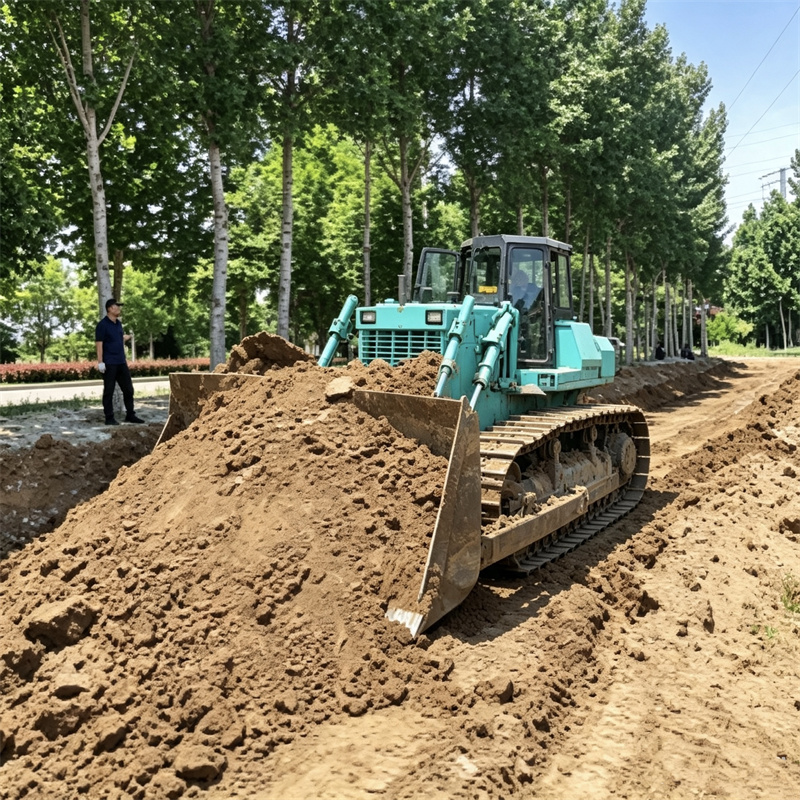

It comes standard with a 3735mm wide Straight-Tilt Blade, 1310mm blade height, 1210mm max lifting height and 540mm digging depth, integrating dozing, site leveling, trench backfilling and slope trimming functions. The wide blade holds a large volume of soil per pass, delivering outstanding efficiency for landscaping earth backfilling as shown in the working picture. The tilt-adjustable blade handles slopes and edge finishing precisely, widely used in greening projects, road foundation construction and mine site leveling.

Variable Speed Travel System for Complex Sites

Independent dual forward & reverse speed control: forward speed 0~11.2km/h, reverse speed 0~13.2km/h. High-speed mode realizes fast site transfer to save moving time, while low-speed mode provides strong traction for steep slopes and heavy soil piling. The 2000mm track center distance ensures a stable chassis, preventing body shaking during climbing and heavy dozing, enabling steady work on various complex terrains including wild land, gardens and factories. The 65L large working hydraulic oil tank keeps stable oil temperature during continuous dozing, maintaining smooth hydraulic output without power attenuation.

Specification
