Overview

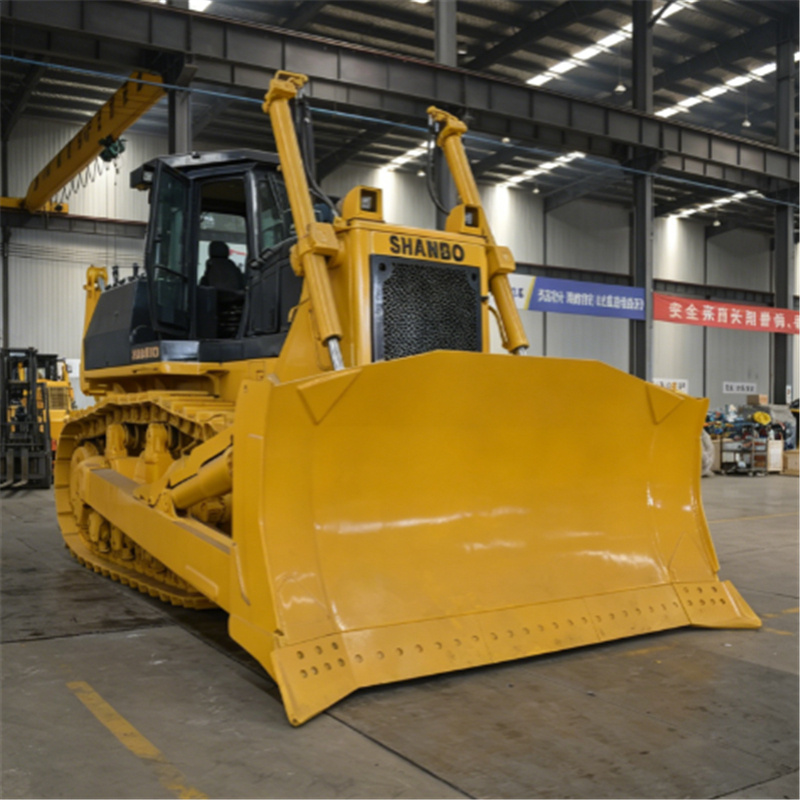

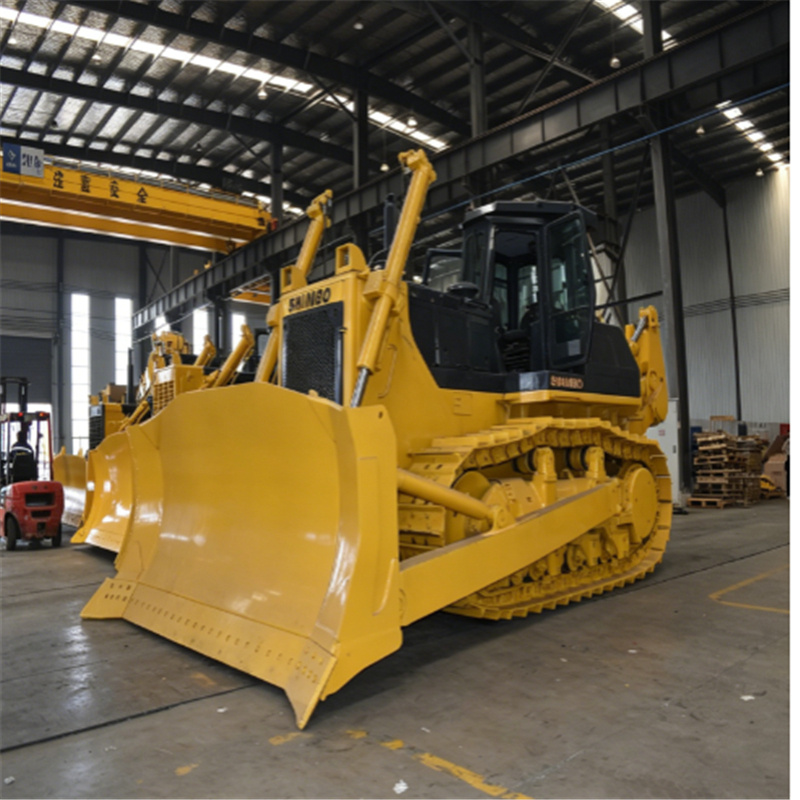

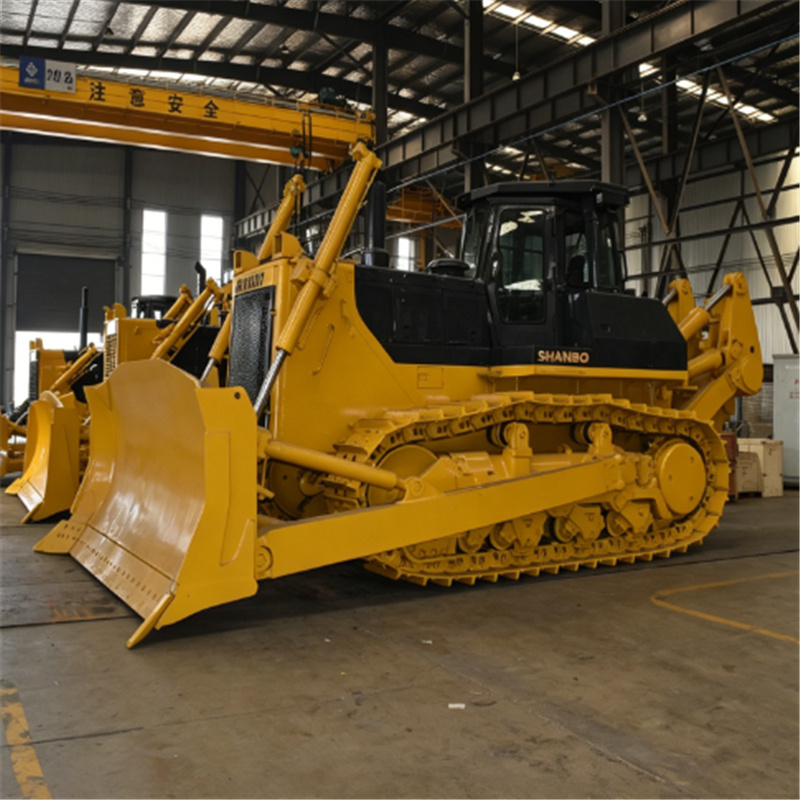

This heavy crawler dozer has an operating weight of 54000kg, equipped with Cummins KTA19-C525 water-cooled turbocharged engine of 340kW rated power. It features a 16m³ single blade capacity, 4314mm wide straight-tilt blade with max cutting depth of 700mm. Max gradeability reaches 30°, adopting spiral bevel gear central drive, wet multi-plate steering clutch & brake with hydraulic linkage control. 610mm wide sealed lubricating crawler delivers ground pressure of only 0.123MPa, matched with ripper hydraulic cylinders. Three forward & three reverse speed gears. Widely used for mine stripping, large infrastructure leveling, dam earthwork and tailing treatment heavy-duty projects with strong power, stable load bearing and high work efficiency.
Description
Powerful Cummins KTA19-C525 Engine
Water-cooled inline four-stroke turbo intercooled diesel engine, 18.9L swept volume, 340kW rated power at 2000rpm. Max torque 1900N·m at 1400rpm, sufficient low-speed torque for stable mine heavy dozing; fuel consumption ≤204g/kW·h for energy saving. 715L large fuel tank supports all-day non-stop earthmoving operation.
Large Capacity Dozer Blade & Strong Cutting Performance
Standard 16m³ large capacity straight-tilt blade, 4314mm width & 1841mm height, hold more soil per pass to boost leveling efficiency. Max cutting depth 700mm, max blade tilt angle 1000mm, powerful stripping on steep slopes and hard soil. Dual lift cylinders + single tilt cylinder hydraulic system realize fast & stable blade movement.

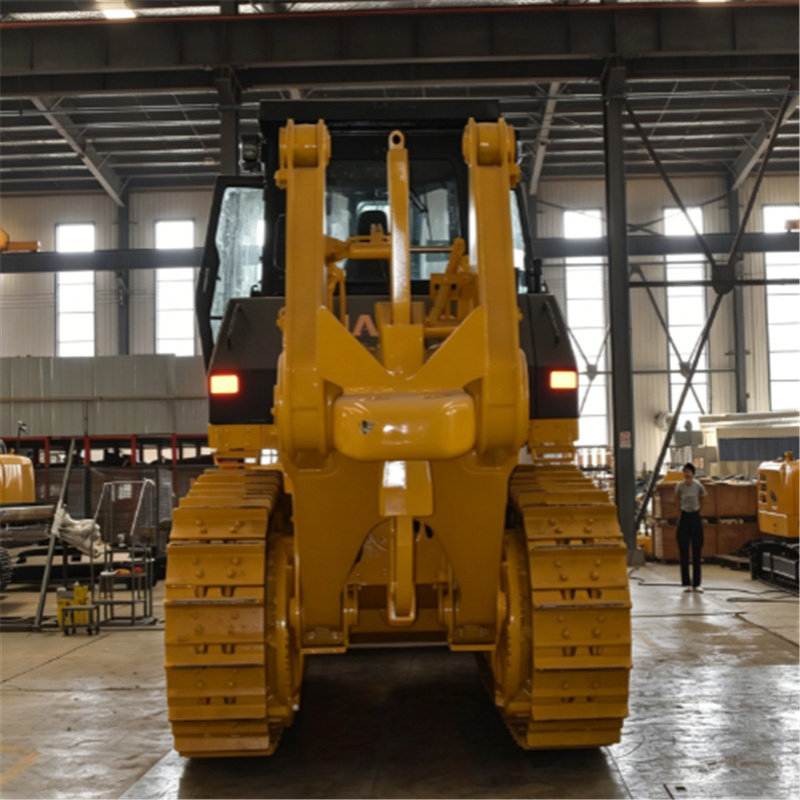

Matched Hydraulic Scarifier For Soil & Rock Breaking
Dual cylinders control scarifier lifting, another dual cylinders adjust tooth angle, break hard soil, weathered rock and agglomerated tailings. Φ190 large bore cylinders provide strong hydraulic thrust, integrate dozing & scarifying to save extra breaking equipment cost.
Single-stage three-element hydraulic torque converter + planetary power shift gearbox, 3 forward & 3 reverse gears for flexible speed switching. Spiral bevel gear central drive with splash lubrication, strong load capacity and low failure rate. Wet multi-plate spring steering clutch, hydraulic separation brake and hydraulic linkage control for smooth & precise steering.

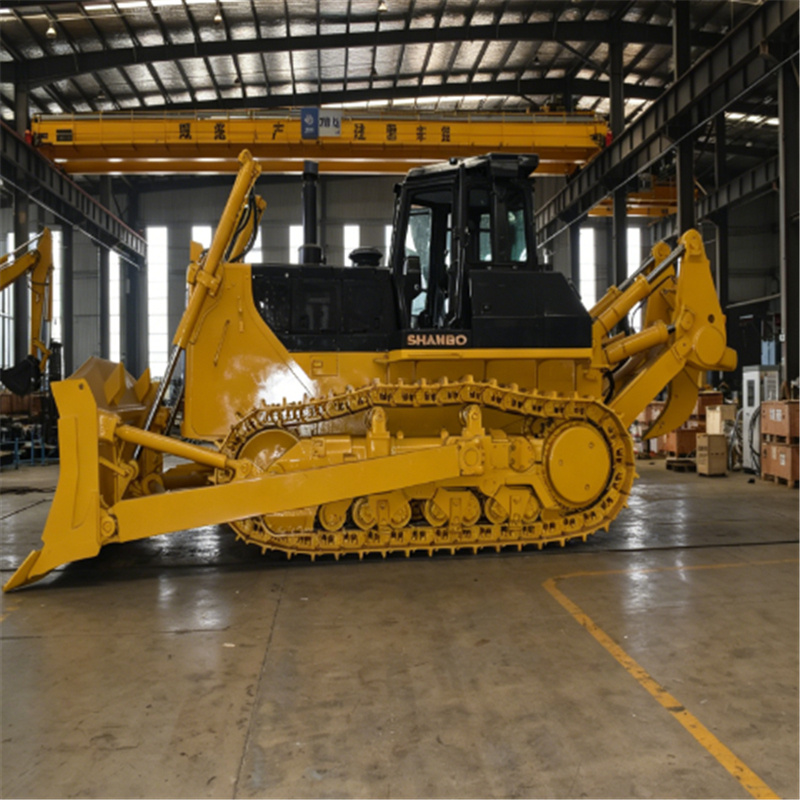

Wide Sealed Lubricating Crawler Chassis
610mm wide track shoes, 41pcs sealed lubricating tracks per side, wear & impact resistant for long service life on stony mine roads. 2 carrier rollers, 4 bilateral +3 unilateral supporting rollers each side with K-type elastic suspension to absorb vibration during heavy work. Ground pressure only 0.123MPa, avoid sinking on soft tailings and mud with outstanding trafficability. 2260mm track center distance delivers balanced chassis support, stable anti-slip dozing on 30° steep slopes.
High Pressure Large Flow Hydraulic System
Max working pressure 21MPa, combined working pump & PPC duplex pump, flow rate reaches 284L/min at 2000rpm engine speed. Independent multi-circuit hydraulics for blade lifting, tilting and scarifier, smooth synchronized compound movements without delay.

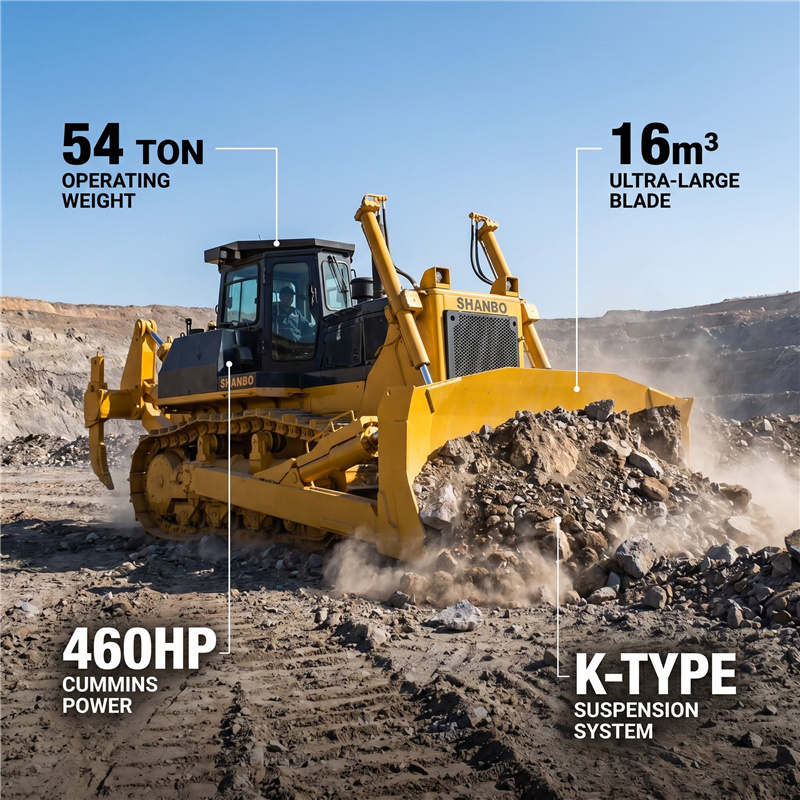

54 Ton Heavy Body For Multiple Heavy-Duty Scenarios
Open pit mine overburden stripping, large reservoir dam earth filling, tailing pond leveling & reclamation, highway subgrade mass dozing, large factory site grading, mine waste residue transportation projects.
Specification
| Engine Model | Cummins KTA19-C525 |
| Type | Water-cooled, in-line, four-stroke, direct injection, supercharging and intercooling |
| Rated speed | 2000 rpm |
| Rated power | 340 kW |
| Number of cylinders-cylinder diameter × stroke | 6-159×159 mm |
| Swept volume | 18.9 L |
| Fuel consumption rate at calibration point | ≤204 g/kW`h |
| Maximum torque | 1900 N`m/1400 rpm |
| Fuel tank capacity | 82 L |
| Min. ground clearance | 715 mm |
| Use weight | 54000 kg |
| Grounding specific pressure | 0.123 MPa |
| Climbing performance | 30° |
| Track center distance | 2260 mm |
| Single shovel capacity | 16 m³ |
| Blade width | 4314 mm |
| Blade height | 1841 mm |
| Maximum cutting depth | 700 mm |
| Maximum inclination of blade | 1000 mm |
| Hydraulic converter | Single-stage unidirectional three-element |
| Gearbox | Power combination planetary gear type (F3-R3) |
| Central drive | Spiral bevel gear, splash lubrication |
| Steering clutch | Wet, multi-piece, spring compression, hydraulic separation |
| Steering brake | Floating belt and hydraulic booster |
| Steering and braking linkage | Hydraulic linkage |
| Final drive | Speed reduction and splash lubrication of first-stage spur gear and first-stage planetary gear |
| Type | K-type elastic suspension structure |
| Riding wheel | 2 each side |
| Thrust wheel | 4 bilateral and 3 unilateral per side |
| Crawler type | Main-section sealed lubricating crawler (41 pieces per side) |
| Track shoe width | 610 mm |
| Maximum working pressure | 21 MPa |
| Oil pump type | Working pump and PPC duplex pump |
| Traffic | 284 L/min (engine speed 2000rpm) |
| Internal diameter of blade lifting cylinder × quantity | Φ140×2 |
| Internal diameter of blade tilt cylinder × quantity | Φ210×1 |
| Internal diameter of lifting cylinder of scarifier × quantity | Φ190×2 |
| Inner diameter of angle adjusting cylinder of scarifier × quantity | Φ190×2 |
| Speed gear | First gear Second gear Third gear |
| Forward (km/h) | 0~3.4 0~6.2 0~10.8 |
| Back (km/h) | 0~4.1 0~7.5 0~13.8 |
