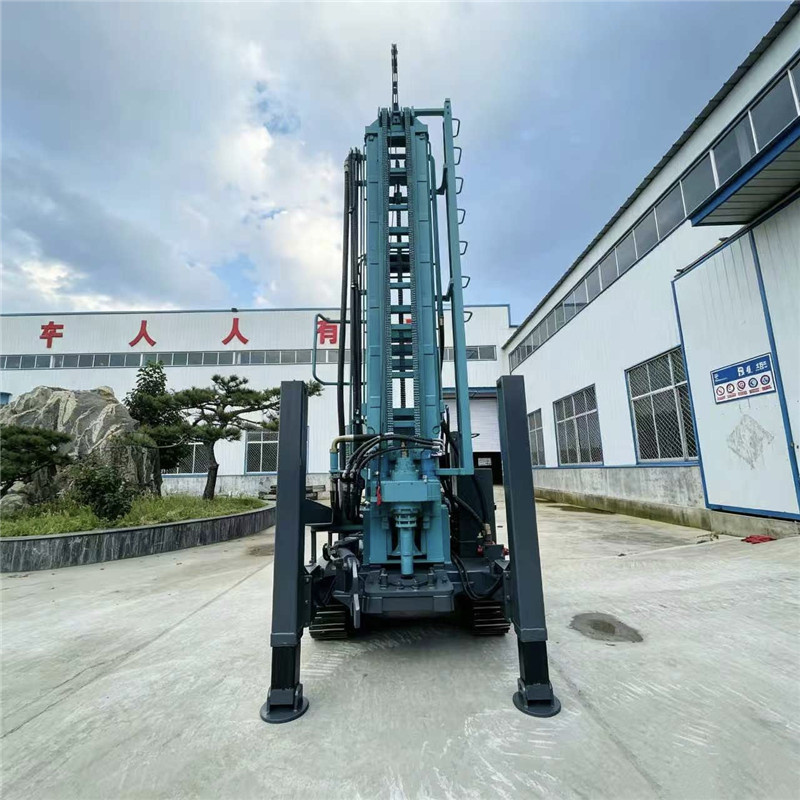

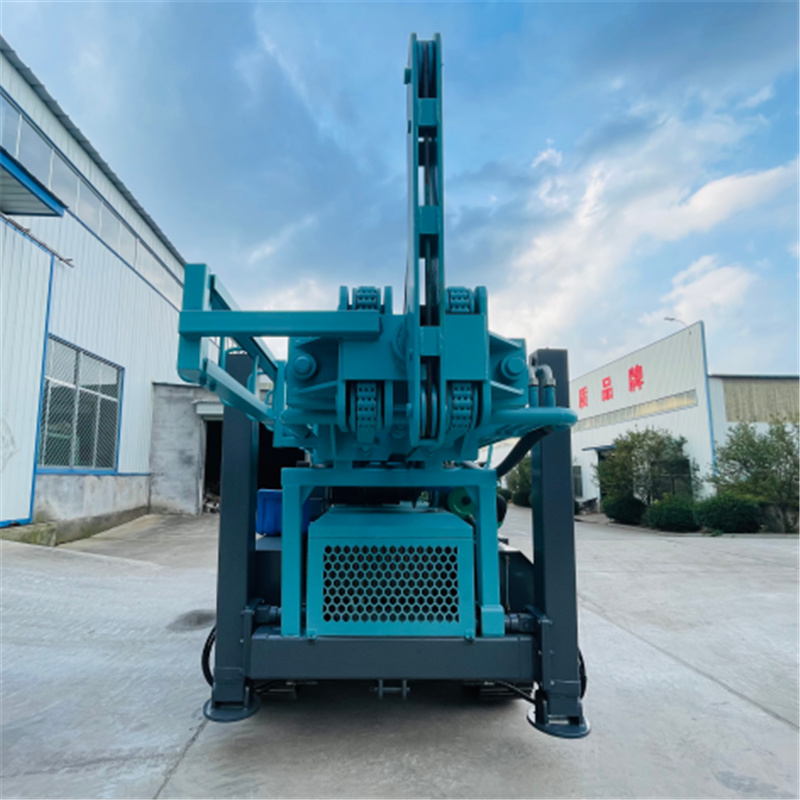

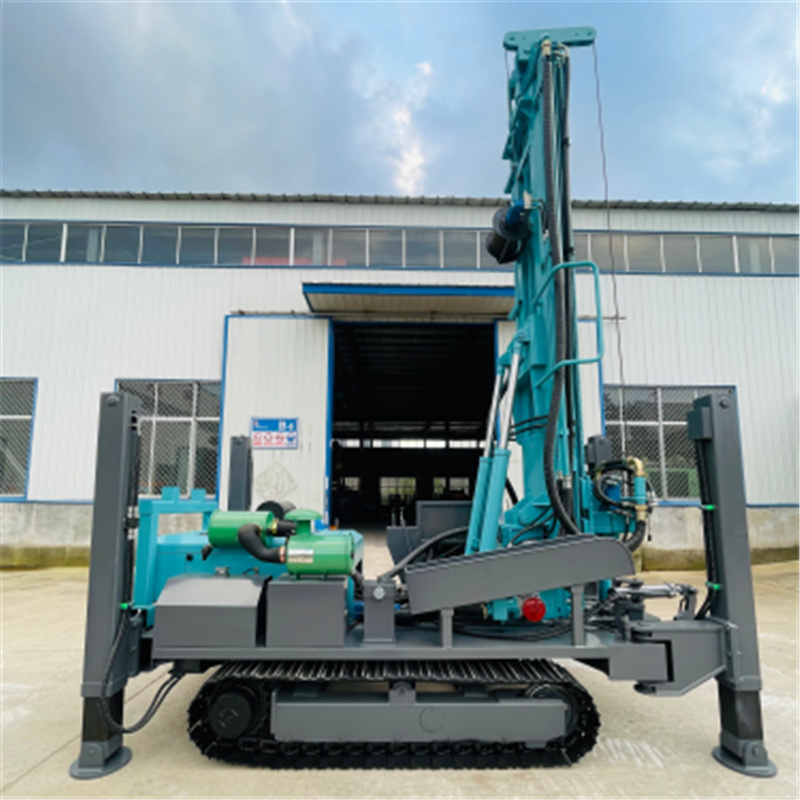

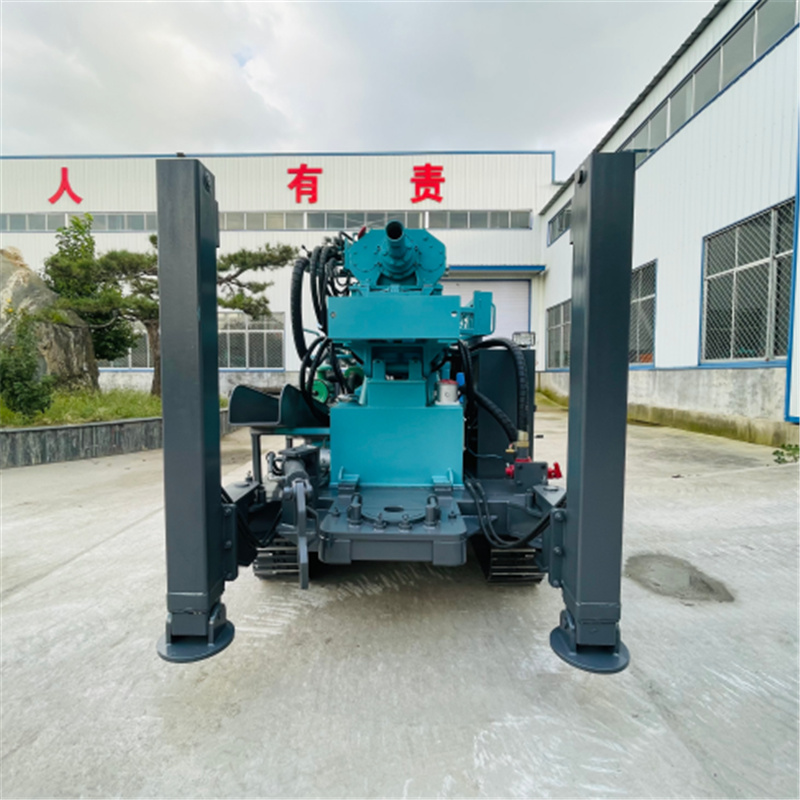

Overview
This 9.2-ton heavy-duty crawler water well drilling rig is equipped with a 92kW Yuchai diesel engine, supporting a maximum drilling depth of 400 meters and hole diameter range from 140mm to 325mm, ideal for medium and deep water well drilling projects. It delivers 24 tons of main lifting force and 6500–9000 N·m rotary torque, with a one-time advance length of 6.6 meters and penetration efficiency of 15–35 meters per hour. It supports Φ89 and Φ102 drill pipes with optional lengths from 1.5m to 6.0m. Fitted with four hydraulic support legs with 1.4m stroke and rubber crawler chassis with 30° max gradeability, the machine can be leveled steadily on rugged outdoor terrain. It works under 1.7–3.4MPa air pressure with air consumption of 17–36 m³/min, matched with a 2-ton auxiliary winch. Overall dimension is 6000×2000×2550mm, loading width only 2.7 meters for easy transportation. Widely applied for deep farm irrigation wells, large village domestic water wells, deep construction dewatering wells and shallow geothermal exploration medium & large drilling projects.
Description

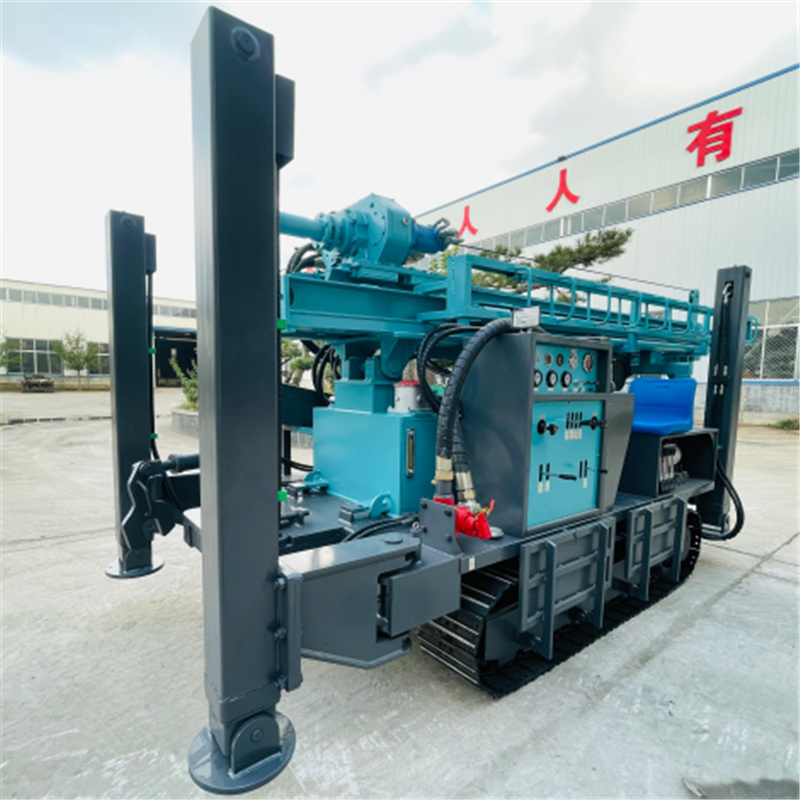

Integrated Central Control Panel

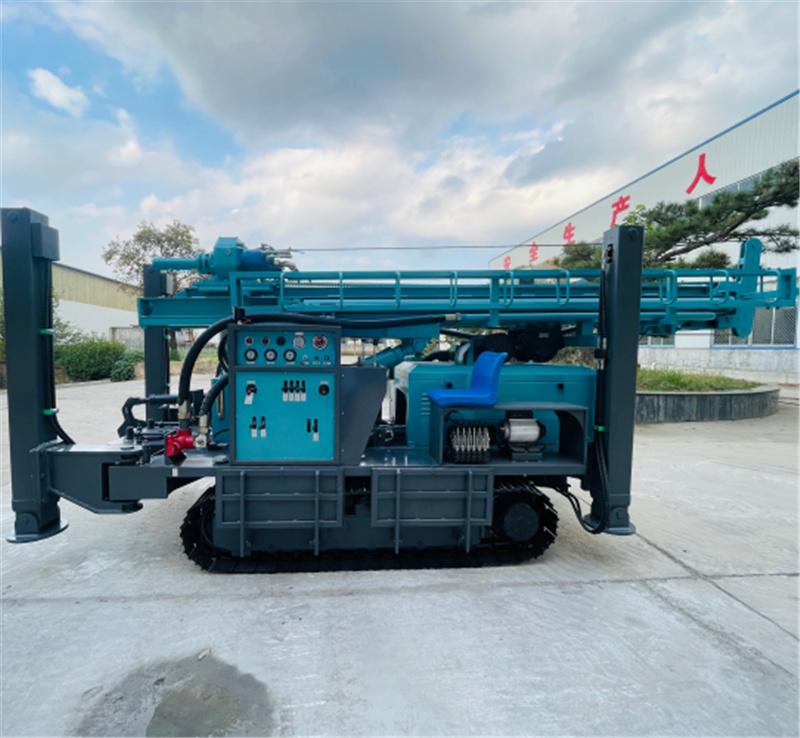

Integrated cabinet control console with partitioned pressure gauges and operation levers, all working parameters at a glance. All machine actions are centrally controlled, easy for new operators to master, effectively reduce long-hour working fatigue.
Powerful 92kW Yuchai Turbocharged Engine
Equipped with Yuchai 4-cylinder turbo diesel engine of 92kW rated power, abundant power reserve and stable high continuous torque output. High power with low fuel consumption, reliable for long-time deep hole drilling outdoors and cut operation cost.
50-50-25 Triple High-Flow Hydraulic Pump
Standard 50-50-25 triple hydraulic pump with high oil pressure and large delivery flow for fast hydraulic response. Low power transmission loss realizes smooth coordinated lifting, rotation and traveling, stable power supply under hard rock drilling conditions.
High-Efficiency Dual Air Filter System
Dual-layer air filter structure fully blocks construction dust and sediment to protect engine core parts. Adapt to dusty mining and loess field sites, extend engine service life, reduce filter replacement frequency and long-term maintenance expenses.
2 Ton Heavy-Duty Hydraulic Winch
Hydraulic winch runs smoothly with low vibration, flexible layout adjustable as required. Max 2-ton lifting capacity safely assists drill pipe hoisting and lowering to boost drilling efficiency.
Heavy-Duty Rotary Gearbox & BM6-395L Hydraulic Motor
Self-developed reinforced rotary gearbox matched with high-torque BM6-395L hydraulic orbit motor for perfect power matching. Large rotary torque accelerates rock penetration, delivers high working efficiency with outstanding fuel saving performance.
35cm Wide Wear-Resistant Steel Crawler
35cm wide steel track shoes with strong load capacity and anti-wear & anti-impact performance. Fit complex rugged sites including mountain, gravel and mud land, stable load bearing without deformation, more suitable for long-term heavy rock drilling than rubber tracks.
Specification
| The weight (T) | 9.2 | Drill pipe diameter (mm) | Φ89 Φ102 |
| The hole diameter (mm) | 140-325 | Drill pipe length (m) | 1.5/2.0/3.0/6.0 |
| Drill depth (m) | 400 | Rig lifting force (T) | 24 |
| One-time advance length (m) | 6.6 | Rapid rise speed (m/min) | 18 |
| Walking speed (km/h) | 2.5 | Fast feeding speed (m/min) | 33 |
| Gradeability (Max.) (°) | 30 | Width of loading (m) | 2.7 |
| Engine Power (kw) | 92 | Hoisting force of winch (T) | 2 |
| Working air pressure (MPA) | 1.7-3.4 | Swing torque (N.m) | 6500-9000 |
| Air consumption (m³/min) | 17-36 | Dimensions (mm) | 6000*2000*2550 |
| Swing speed (rpm) | 66-135 | The penetration efficiency (m/h) | 15-35 |
| High leg stroke (m) | 1.4 | The engine brand | yuchai |
