CVP130 Crawler Self-propelled Vacuum Lifter | Concrete & Natural Stone Paving Machine

Overview

Product Introduction

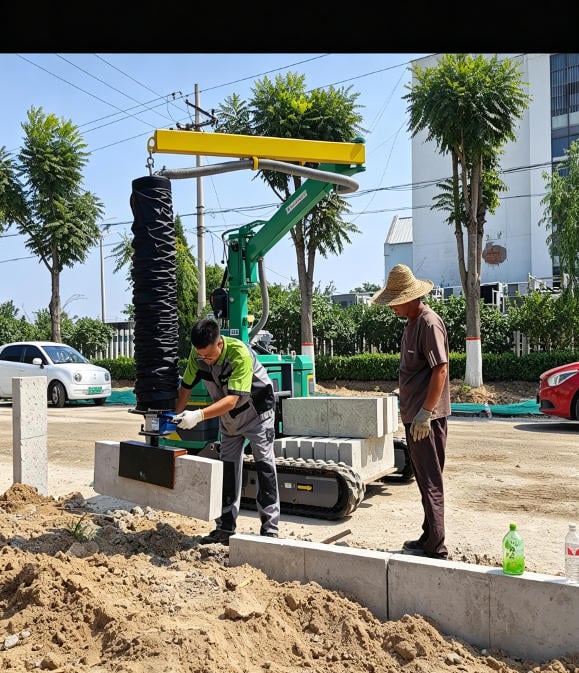

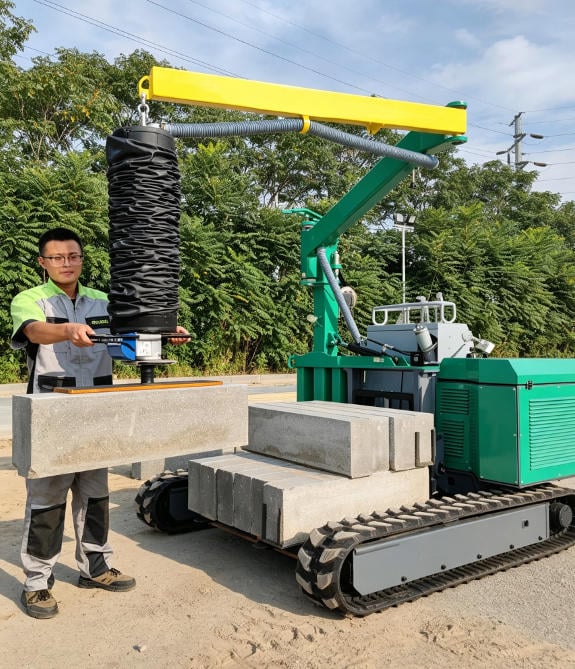

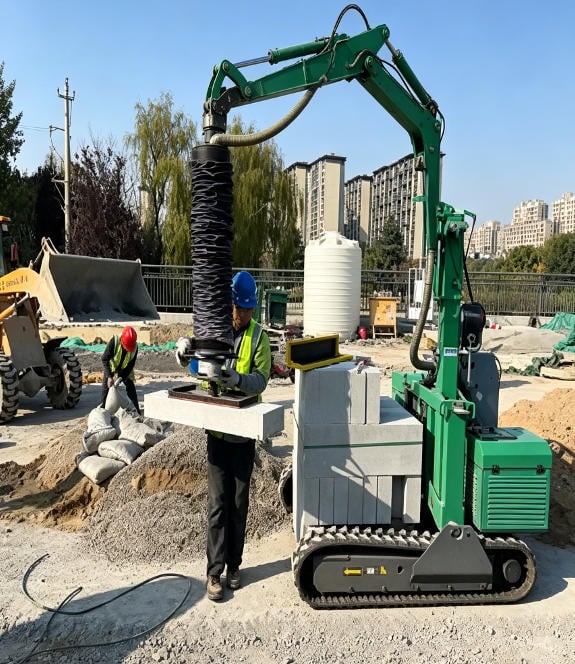

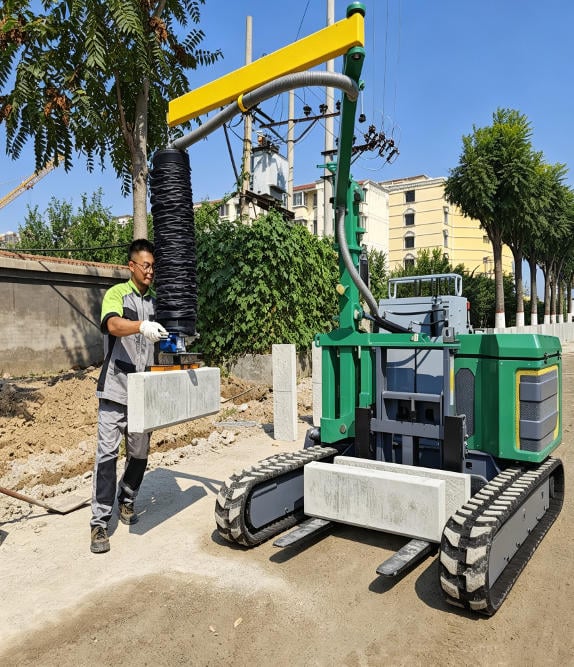

The CVP130 Crawler Self-propelled Vacuum-Pallet Lifter is engineered for efficient laying operations of concrete precast elements and natural stone slabs. Equipped with integrated vacuum tube lifting technology, this tracked machine is capable of handling kerb stones, stone slabs, drainage and retaining wall components. It supports pallet loading up to 1,600 kg with a maximum pallet width of 1,320 mm. The standard vacuum lifting capacity reaches 130 kg, and an optional 240 kg heavy-duty lifting version is available.

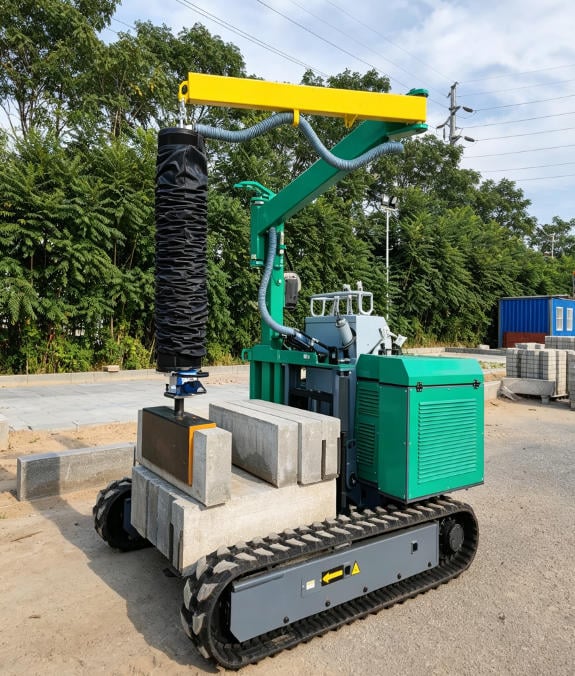

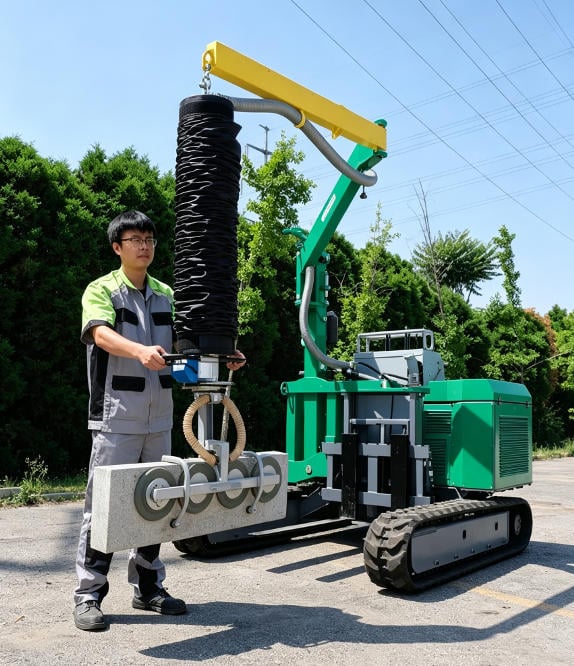

The rubber track chassis delivers stable performance on rough and uneven construction sites. Thanks to its compact design, the machine can be transported by small trucks or passenger car trailers for fast job-site relocation. Two power options are offered: Hatz air-cooled silent diesel engine (13 HP) or Yanmar 3-cylinder water-cooled diesel engine (20 HP). Vacuum suction pads are not included as standard, custom suction pads of different shapes and sizes can be supplied on request.

Key Advantages

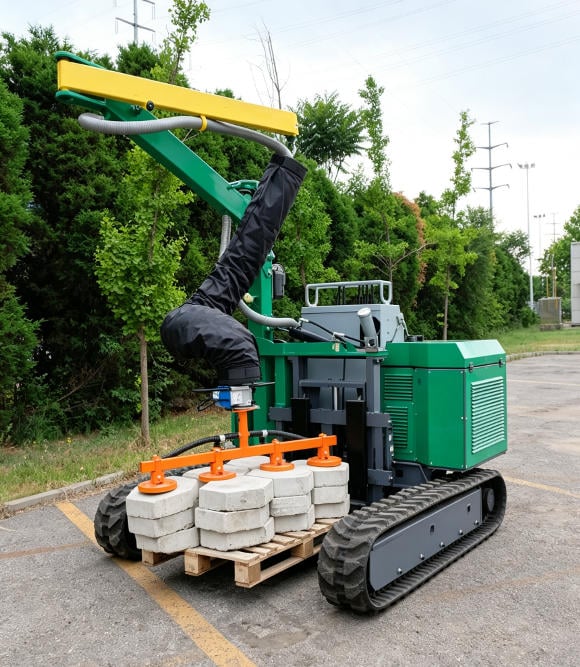

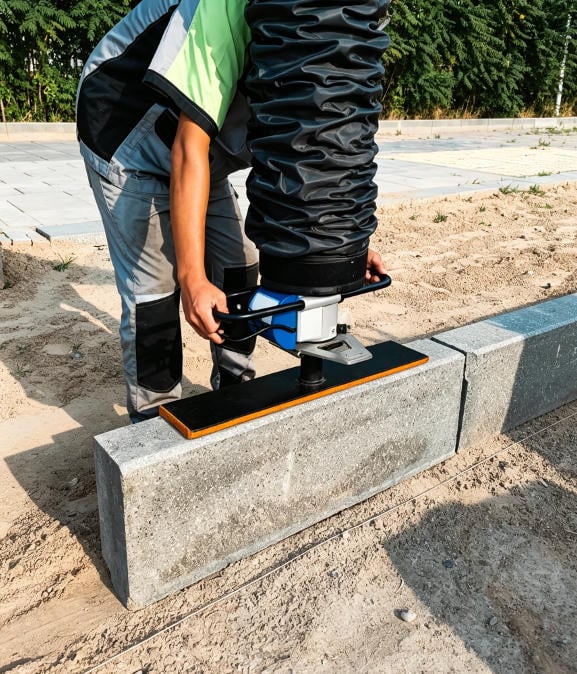

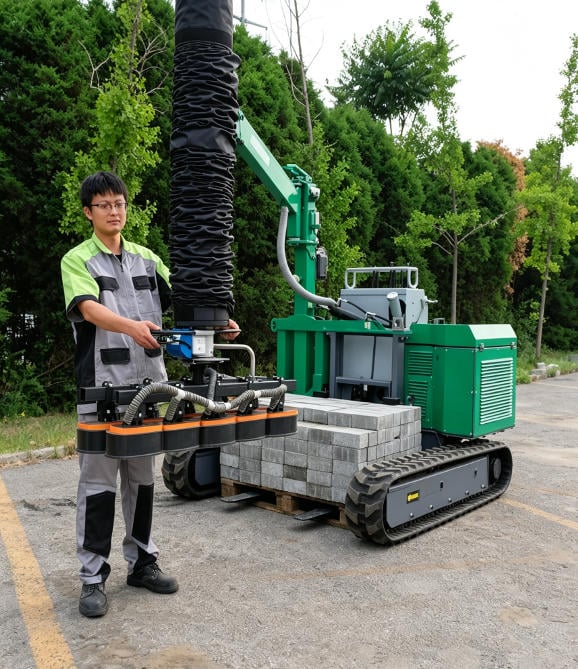

✅ Precise & economical paving for kerbstones, concrete units, natural stone slabs, drainage and retaining wall elements ✅ High load capacity: pallet load up to 1,600 kg; standard vacuum lifting capacity 130kg, optional 240kg heavy-duty version ✅ Hydraulic balanced lifting arm: one operator can fold the arm within minutes, minimal setup work ✅ Foldable boom for operation in confined, narrow job sites ✅ Rubber tracked undercarriage for easy maneuvering on rugged terrain ✅ Quick-change vacuum pad system for fast suction pad replacement ✅ Compact structure for easy transportation, relocation and storage on site

Technical Specifications

表格

Note: Vacuum suction pads are not included in standard package. Custom suction pads with various shapes and sizes are available upon demand.
